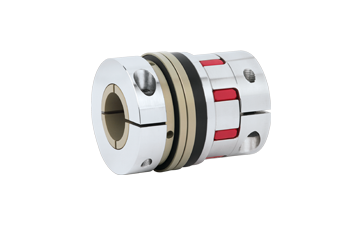

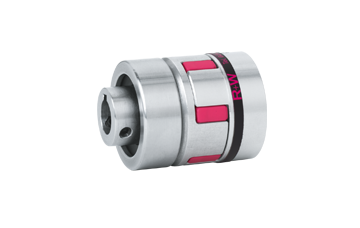

Khớp nối R+W ES2

Công Ty TNHH Thiết Bị Công Nghiệp D&H đại lý khớp nối R+W  tại Việt Nam

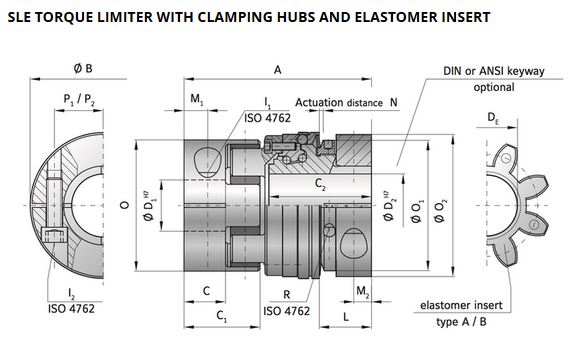

• Design:
  • two coupling hubs are concentrically machined with curved jaws, one side with an integral torque limiter.

  • the torque limiter is available in single position, multi position, load holding or full-disengagement versions.
• Tolerance: Overall clearance between shaft and hub 0.01 to 0.05 mm.
• Material:
  • torque limiter: high strength hardened steel with rust protected surface (oxidized)
  • clamping hub D1: up to series 450 high strength aluminum, series 800 and up steel

  • clamping hub D2: up to series 60 high strength
aluminum, from series 150 and up steel
  • elastomer insert: precision molded, wear resistant, and thermally stable polymer
• Properties of Elastomer Coupling model ES2:
  • reliable torque overload protection
  • short compact design
  • backlash free due to patented R+W design
  • disengagement within msecs
  • large actuatuion path when disengaging
  • electrically isolating
  • press fit design
