Công Ty TNHH Thiết Bị Công Nghiệp D&H đại lý Khớp nối R+W tại Việt Nam
- Thiết kế:
- flange mount hubs on both sides
- 2x bellows with intermediate tube (Series 10 without intermediate tube)
- welded connection between hubs and bellows.
- Temperature range: -40° C to +300° C (-40° F to +572° F)
- Tolerance: Overall clearance between centering diameters 0.03-0.08 mm.
- Service life: These couplings are maintenance-free if the technical ratings are not exceeded.
- Material:
- bellows made from highly flexible, high grade stainless steel;
-
hubs made from steel
- Non standard applications: Custom designs with various tolerances, keyways, materials, dimensions, etc. available upon request.

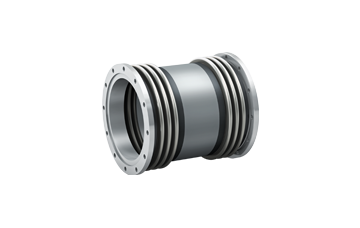

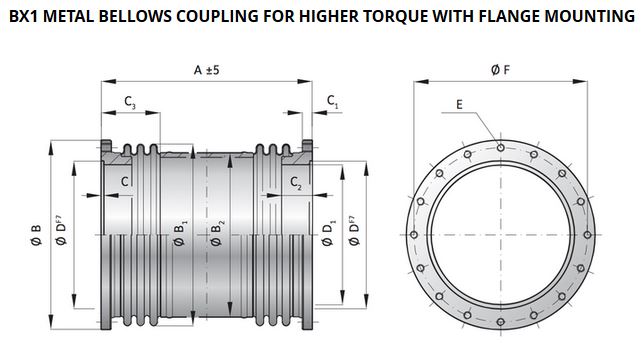

- Properties of Bellows Couplings model BX1:
- for high torque applications
- compact, simple design
- easy mounting and dismounting
- backlash free and torsionally rigid
- various overall lengths available
- high misalignment compensation
