CDM 08

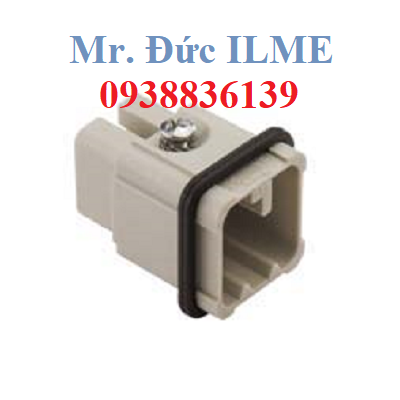

Brief description: male insert, 8 poles, crimp connections, 10A, 50V, 0,8kV, 3, size "21.21", CLASS insert series
Technical details
Product description | |
Model | male insert |
Version | crimp connections |
Series | CD |
Product type | for male contacts 10A |
Family | CLASS inserts |
Size | size "21.21" |
N. of poles | 8 poles |
Technical data | |
Current | 10 A (A.C. and D.C.) |
Voltage | 50 V |
Rated impulse withstand voltage | 0,8kV |
Pollution degree | 3 |
Operating temperature range (min, max) | -40°C … +125°C |
Mating cycles | ≥ 500 |
IP degree of protection | IP20 without enclosure, IP44/IP66/IP67/IP68 and IP69 with enclosure |
PE connection type | Screw |
PE terminal stripping length | 7 mm |
PE wire cross-section | 0,14-2,5 mm2; AWG 26-14 |
Tightening torque for PE connection | M4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm ) |
Further technical details | |
Characteristics according to EN 61984 | 10A 50V ac / 120 dc 0,8kV 3 |
Insulation resistance | ≥ 10 GΩ |
Contact resistance | ≤ 3 mΩ |
Rated voltage according to UL/CSA | 50V |
UL 94 flammability rating | V-0 |
Main contats stripping length | 8 mm (6 mm for 2,5 mm²) |
Tightening torque for fixing screws | M3: 0.5 Nm; 4.4 lb.in (0.5x3 mm) |
Weight | 10,00 g |
Approvals / Standards | |
Reference standard | EN 61984 (2001-11) |
Quality mark | EAC |
Conformity | CQC, CE |
General ordering information | |
EAN13 code | 8015747015059 |
Tariff number | 85369095 |
Country of origin | Made in EU (IT) |
ETIM classification | EC000438 |
Packaging Information | |
Packaging length | 210,00 mm |
Packaging height | 200,00 mm |
Packaging width | 130,00 mm |
Packaging weight | 2,00 kg |
Packaging volume | 5,46 dm³ |
Packaging description | Carton box |
Packaging quantity | 200 Pcs |
Packaging EAN code | 8015747103206 |
Sub-packaging weight | 0,40 kg |
Sub-packaging description | Carton |
Sub-packaging quantity | 40 Pcs |
Sub-packaging EAN barcode | 8015747103213 |
