CDF 15

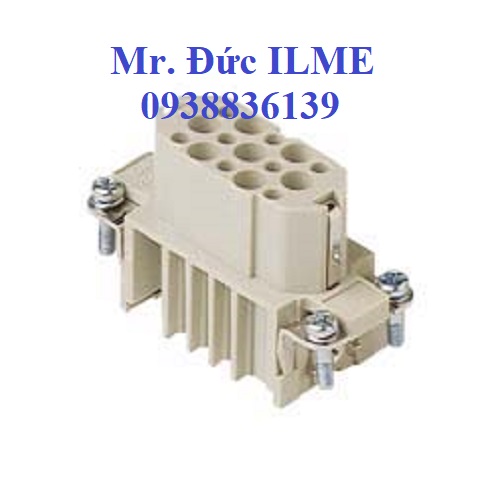

Brief description: female insert, 15 poles + PE, crimp connections, 10A, 250V, 4kV, 3, size "49.16", CLASS insert series
Technical details
| Product description | |
| Model | female insert |
| Version | crimp connections |
| Series | CD |
| Product type | for female contacts 10A |
| Family | CLASS inserts |
| Size | size "49.16" |
| N. of poles | 15 poles +  |
| Technical data | |
| Current | 10 A (A.C. and D.C.) |
| Voltage | 250 V |
| Rated impulse withstand voltage | 4kV |
| Pollution degree | 3 |
| Operating temperature range (min, max) | -40°C … +125°C |
| Mating cycles | ≥ 500 |
| IP degree of protection | IP20 without enclosure, IP65/IP66 with enclosure |
| PE connection type | Screw |
| PE terminal stripping length | 7 mm |
| PE wire cross-section | 0,14-2,5 mm2; AWG 26-14 |
| Tightening torque for PE connection | M4: 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm ) |
| Further technical details | |
| Characteristics according to EN 61984 | 10A 250V 4kV 3; 10A 230/400V 4kV 2 |
| Insulation resistance | ≥ 10 GΩ |
| Contact resistance | ≤ 3 mΩ |
| Rated voltage according to UL/CSA | 600V |
| UL 94 flammability rating | V-0 |
| Main contats stripping length | 6 - 8 mm |
| Tightening torque for fixing screws | M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm) |
| Weight | 30,00 g |
| Approvals / Standards | |
| Reference standard | EN 61984 (2001-11) |
| Quality mark | DNV-GL, EAC |
| Conformity | CQC, CE |
| General ordering information | |
| EAN13 code | 8015747014366 |
| Tariff number | 85369095 |
| Country of origin | Made in EU (IT) |
| ETIM classification | EC000438 |
| Packaging Information | |
| Packaging length | 230,00 mm |
| Packaging height | 110,00 mm |
| Packaging width | 130,00 mm |
| Packaging weight | 1,00 kg |
| Packaging volume | 3,29 dm³ |
| Packaging description | Carton box |
| Packaging quantity | 30 Pcs |
| Packaging EAN code | 8015747014373 |
| Sub-packaging weight | 0,17 kg |
| Sub-packaging description | Carton |
| Sub-packaging quantity | 5 Pcs |
| Sub-packaging EAN barcode | 8015747014380 |
